MCF-G Torque limiter

产品型号:MCF-G

标准编号:MC
联轴器类型:Torque limiter
公称转矩:1~8000N·m
轴孔:1~100
外形尺寸:43~330
孔径:1~100
重量:0.2~87.7kg
长度:56~245
外径:43~330
是否提供加工定制:Yes

产品描述

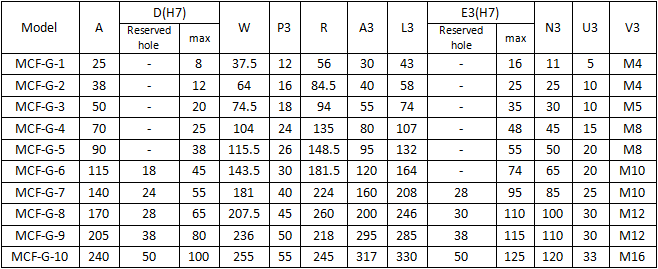

参数详情

Main performance characteristics:
1. The standard friction torque limiter is equipped with an elastic coupling to facilitate the connection between the shaft and the shaft. It has a certain eccentricity compensation function and also has good shock absorption.
2. Simple structure and convenient disassembly.
3. Low cost and economical.
4. It slips after overload, but it will not disengage and keep the set torque value.
